125 – c.c. Chek Motorcycles

125 c.c. CHEK MOTORCYCLES

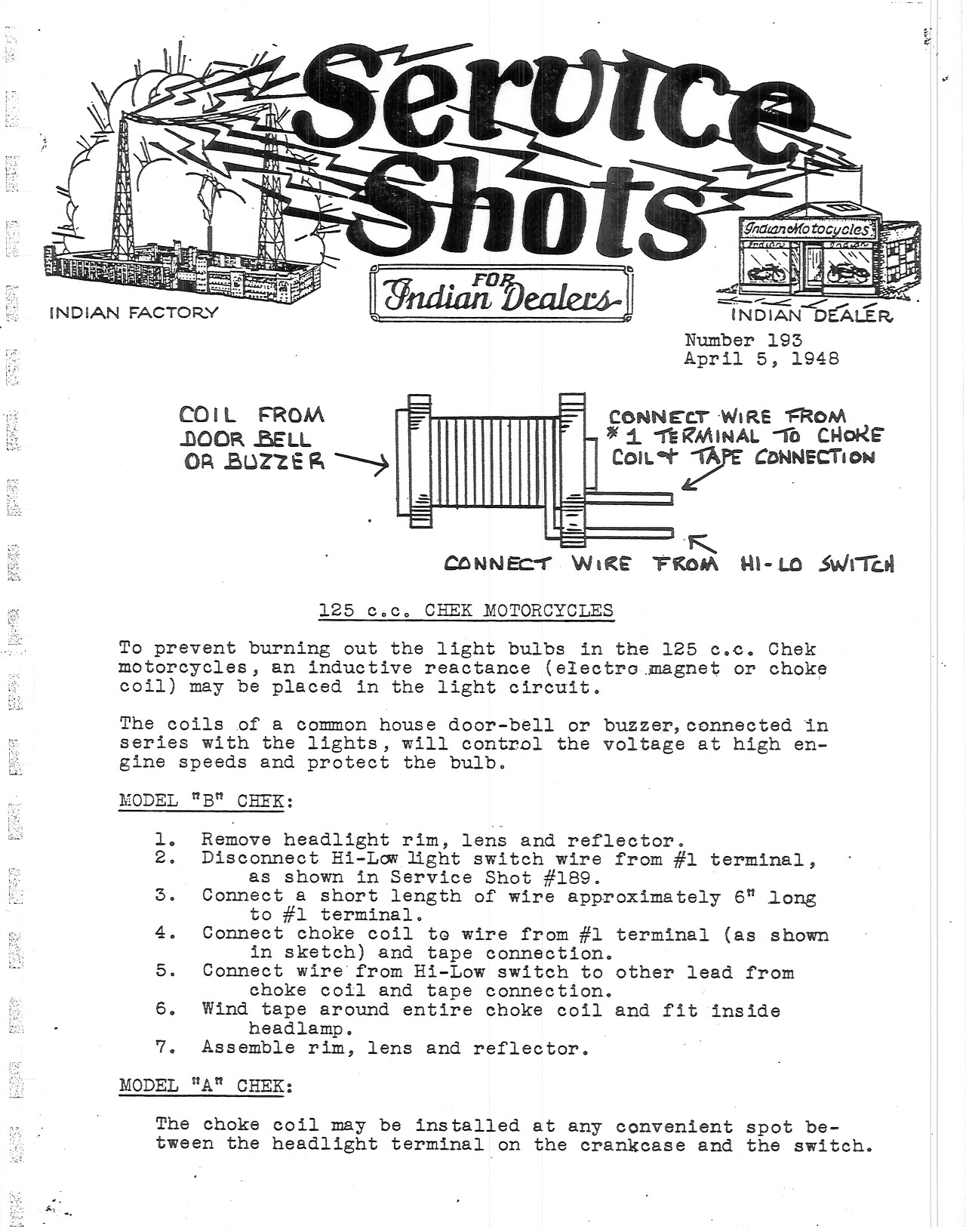

To prevent burning out the light bulbs in the 125 c.c. Chek motorcycles, an inductive reactance (electro magnet or choke coil) may be placed in the light circuit.

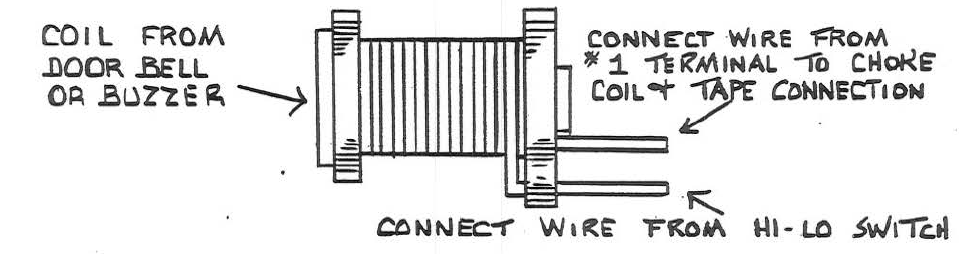

The coils of a common house door-bell or buzzer, connected in series with the lights, will control the voltage at high engine speeds and protect the bulb.

MODEL “B” CHEK:

1. Remove headlight rim, lens and reflector.
2. Diconnect Hi-Low light switch wire from #1 terminal, as shown in Service Shot #189
3. Donnect a short length of wire approximately 6″ long to #1 terminal.
4. Connect choke coil to wire from #1 terminal (as shown in sketch) and tape connection.
5. Connect wire from Hi-Low switch to other lead from choke coil and tape connection.
6. Wind tape around entire choke coil and fit inside headlamp.
7. Assemble rim, lens and reflector.

MODEL “A” CHEK:

The choke coil may be installed at any convenient spot between the headlight terminal on the crankcase and the switch.
